Hot Curved Series

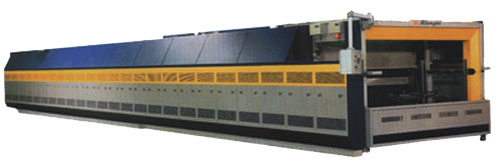

BRW22-2515 Constant Bending Furnace

Application
Our multi-cell Constant Bending Furnace, which is on the par with abroad same product, is initiated in domestic market with PLC program control, frequency converting speed transmission regulation and rectilinear orbit, the furnace is with features of smooth operation, stable heating and anneal, high production efficiency and energy saving from 30-50 �?.
Constant Bending Furnace, in which furnace chamber is able to lift automatically, with menu display PLC+CUP intelligent control system and technological parameter memory system may be made to order.
Technical Parameters

Model	Dimension �? length×Width×Height �?mm	Glass Size	Working Speed	Driving Motor	Installation Power	Working Pressure	Working Temperature	Max Arc Depth
BRW10	10500×3500×2750	2500×1500	20 �?/ �?	2.2kw	300kw	0.4 �?0.8Pa	600 �?650 �?	0.4 �?0.8Pa
BRW12	12000×3500×2750	2500×1500	20 �?/ �?	2.2kw	360kw	0.4 �?0.8Pa	600 �?650 �?	0.4 �?0.8Pa
BRW16	16000×3500×2750	2500×1500	20 �?/ �?	2.2kw	420kw	0.4 �?0.8Pa	600 �?650 �?	0.4 �?0.8Pa

Note: the above mentioned are standard data, special specification may be designed and made by request.

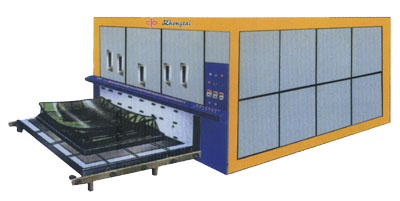

BEW4-3020 4 Chamber Bending Furnace

Application
·The furnace is able to bend architectural and decorative glass, windscreen and fishbowl and so on.
·Specifications of 3-chamber,4-chamber,6-chamber and 8-chamber(or super large)may be made to order.
·Installation Power: 150 to 300KW.
Technical Parameters

Model	Dimension �? length×Width×Height �?mm>	Glass Size	Working Speed	Driving Motor	Installation Power	Working Pressure	Working Temperature	Max Arc Depth
BRN4-3020	7500×4200×2750	3000×2000	45 �?/ �?	2.2kw	280kw	0.4 �?0.8Pa	600 �?650 �?	0.4 �?0.8Pa
BRN4-3222	8200×4500×2750	3200×2200	60 �?/ �?	2.2kw	340kw	0.4 �?0.8Pa	600 �?650 �?	0.4 �?0.8Pa
BRN4-3626	9500×4900×2750	3600×2600	60 �?/ �?	2.2kw	380kw	0.4 �?0.8Pa	600 �?650 �?	0.4 �?0.8Pa

Note: the above mentioned are standard data, special specification may be designed and made by request.

ZTL2-3625 Double-Station Bending Furnace(Ordinary)

Application
Single chamber, single chamber with double-station and triple chamber with triple station heat bending furnace are for glass heat bending of architecture, windscreen, fishbowl and furniture and other item. Maximum size:3200×2200mm,maximum bending depth:800mm.
Technical Parameters

Model	Maximum Glass Size(mm)	Thickness Range	Curve Depth	Dimension	Power (kw)
ZTL2	3600×2200mm	3 �?25	650mm	7000×6000mm	180kw
ZTL2	3600×2500mm	3 �?25	650mm	8000×7500mm	250kw

Note: the above mentioned are standard data, special specification may be designed and made by request.
