Glass Variable Miter Machine

1. Brief Introduction:

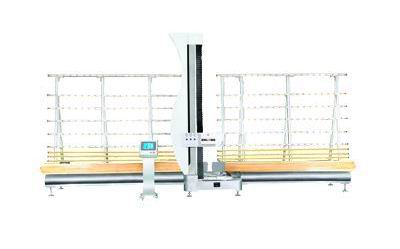

LZ25 glass vertical drilling machine is controlled by computer. In actual operation, just put the glass on the transmission belt, input drilling position data, press the start button, the machine will automatically position itself and finish all drilling operations, and automatically stop when the work is completed. Featuring high drilling efficiency and accurate position, suitable for the processing of building glass and furniture glass.

2. Main technical parameters:

Drilling diameter
B=φ4~φ60mm
Size
7000×2020×3620mm
Glass thickness
δ=5~30mm
Drill connector
Taper K=60â„? Bolt hole G1/2"
Max. height of glass
2500mm
Weight
3000Kg
Min. Size of glass
500×150mm
Power
6.45Kw
Speed of  X axis
1~5m/min
Power supply
380V 3φ 50Hz
Speed of  Z axis
1~5m/min
Air pressure
0.6~0.8Mpa
Drilling  tolerance
±0.5
Relative humidity
�0%



★�Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
