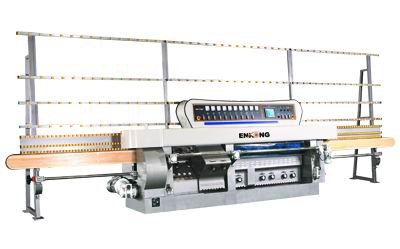

Glass Variable Miter Machine

1.     Brief Introduction:

 1.1this machine is able to grind and polish the miter angle on glass, with bottom edge polishing and rear seaming all at the same time.

1.2 The control system uses a Mitsubishi PLC control unit.

1.3 Input and output conveyor adopt timing belt which can improve the   transmission precision.

1.4 The processed glass surface is very bright and smooth, approaching the original glass surface.

1.5 The mitering angle is from 0 to 60 degree.

2. Technical Parameter

1  Processing glass thickness: 3~~28mm

2  Miter angle:  0°~~60°

3  Min size processing glass:  80mm×80mm

4  Processing speed:  0.75~~3.75m/min

5  Installation power: 20.3KW

6  dimension: 7800mm (length) ×1200mm (width) ×2500m (height)
★�Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
