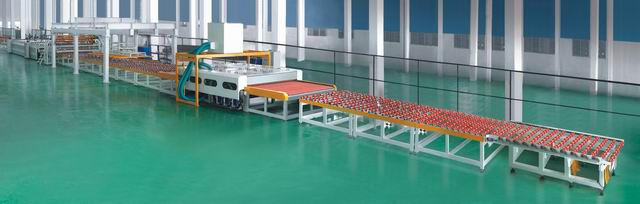

Flat Glass Laminating Line

2

Information

The Production Line is composed of loading and unloading table, Washing & Drying Machine, PVB roller, glass laminator, suction cup hanger, roll squeezer and heating section. The Line is especially used in manufacturing of flat safety laminated glass. Two control systems are optional: center computer control system and Independent Section Control System, either of which is reliable in quality and the function. The whole line is PLC controlled.

Technical parameter:
Glass thickness
3ï½?9mm
Laminating panel max. Thickness
60mm
Min glass size
520×550mm
Max glass size
2600×6000mm
Working height
950±20mm
Consumption of compressed air
20n m3/h (Min pressure 0.6Mpa)
Consumption of soft water
0.4 m3/h
Complementary voltage
220v
Installed power
280kw
Power consumption
230kw
★�strong> Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
